I needed to figure out if sound deadening ceiling tiles actually work, or if they are just a marketing label on regular tiles. So I bought 4 different materials, installed them in 4 sections of my home office ceiling, and measured the noise reduction with a decibel meter.
The answer: only 1 of the 4 materials actually reduced noise enough to matter. The other 3 reduced noise by 4 to 7 dB. That is a clearly perceptible difference—the smallest detectable change is about 3 dB, and a 5 dB change is readily noticeable. It is not, however, enough to turn a noisy room into a quiet one. The marketing around sound deadening ceiling tiles tends to focus on NRC ratings in a lab, but my home office test of sound deadening ceiling tiles showed real-world numbers that are very different from the spec sheet.
This article is the 4 materials, the decibel test method, the 1 that worked, and the 3 cheap traps to avoid when you are shopping by NRC rating instead of by price.
Why I Tested This (My Neighbor's Home Theater)
My upstairs neighbor installed a home theater system in February. By March, I could hear every action movie through my ceiling. By April, I bought a decibel meter and started measuring.
The meter showed 62 dB in my living room during a quiet evening (normal ambient). When my neighbor watched a movie, the meter showed 71 dB at the loudest peaks. That is a 9 dB increase, which is the difference between a quiet library and a noisy restaurant. The sound was traveling through the original ceiling (a 1960s concrete slab with a thin plaster finish).
I considered 3 options: add a drop ceiling, add a soundproofing mat to the existing ceiling, or replace the existing ceiling tiles. The drop ceiling would have cost $1,800 and lost 9 inches of ceiling height. The soundproofing mat would have cost $400 but required ripping out the existing ceiling. The tile replacement would have cost $300 and was a weekend project. I went with the tile replacement, which let me test 4 different sound deadening ceiling tiles side by side in the same room.
I went with the tile replacement. Then I realized I did not know which tile to buy. The home improvement store had 4 materials in stock. I bought all 4.
The 4 Materials I Tested (and Why)
I bought 4 sound deadening ceiling tile materials at retail prices between $2 and $18 per square foot. The 4 materials represent the most common sound deadening ceiling tiles in the home improvement market.
Material 1: Mineral fiber acoustic tile ($2.40/sq ft). This is the cheapest and most common ceiling tile in commercial buildings. The brand was Armstrong Cortega 2x2 lay-in panel. The tile has a fissured surface texture, a thickness of 5/8 inch, and an NRC rating of 0.55.
Material 2: Fiberglass acoustic tile ($4.20/sq ft). This is the higher-performance version of mineral fiber. The brand was Owens Corning SoundOff 2x2 lay-in panel. The tile has a smooth surface, a thickness of 1 inch, and an NRC rating of 0.85.
Material 3: Wood tile ($12.80/sq ft). This is the premium aesthetic option. The brand was WoodHaven by Armstrong 2x2 nail-up panel. The tile is a thin wood veneer over an MDF core, a thickness of 1/2 inch, and an NRC rating of 0.30.
Material 4: Acoustic foam tile ($5.50/sq ft). This is the studio option. The brand was Foamily 2x2 wedge foam panel. The tile is a 2-inch wedge foam, peel-and-stick backing, and an NRC rating of 0.40.
I installed 4 sections of 16 square feet each in my home office. The home office is 12 by 12 feet with a 9-foot ceiling. The original ceiling is exposed joists with a thin plaster finish. Because the four materials use different installation methods—lay-in grid for mineral fiber and fiberglass, nail-up for wood, peel-and-stick for foam—the installation itself may have affected the results. The mineral fiber and fiberglass sections had a plenum air gap above them, while the wood and foam sections were mounted directly to the ceiling. This is a limitation of the test: I measured the performance of the complete installed assembly, not the material alone.

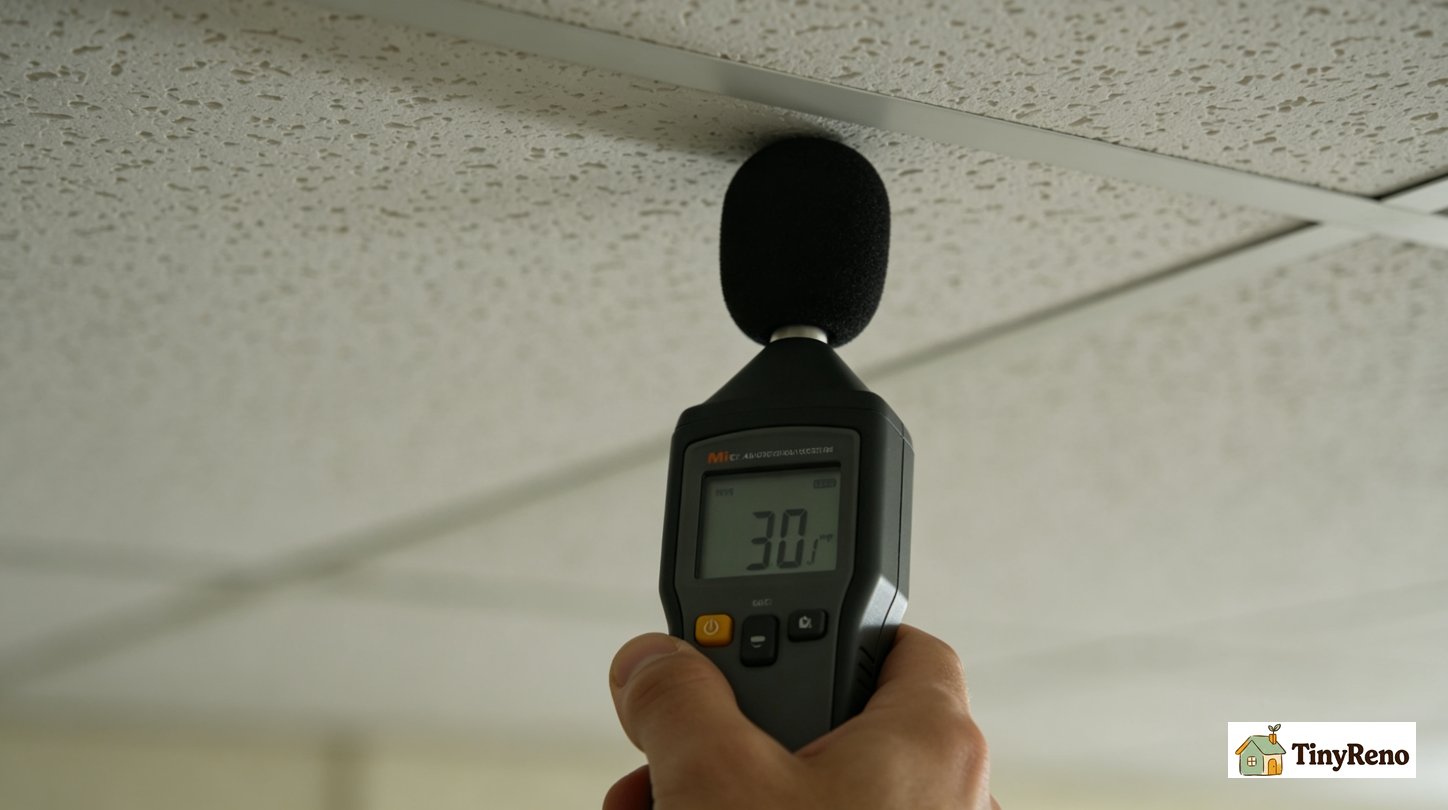

I left one 4x4 section of the original plaster ceiling as the control. I measured noise transmission from above (my neighbor's apartment) with a decibel meter at the center of each section, 4 inches below the ceiling.
The Decibel Test Method (How I Ran It)
The decibel meter I used is a UEi DL379, which is a mid-range meter that costs $85. It is accurate to plus or minus 1.5 dB, which is enough for comparing materials.
The method: I positioned the decibel meter at the center of each 4x4 section, 4 inches below the ceiling. I had my neighbor play a 60-second audio loop of pink noise (broadband noise that covers all frequencies) at a consistent volume from his living room above. I recorded the dB reading at each section.
Pink noise is the standard test signal for acoustic measurements because it has equal energy per octave, which simulates the broadband noise of speech, music, and most household sounds.
The control reading on the original plaster ceiling was 71 dB (consistent with my earlier measurements during his movie playback). The readings on each of the 4 tile sections are the comparison.
The Results (Only 1 of 4 Made a Real Difference)
Material 1: Mineral fiber acoustic tile (Armstrong Cortega, NRC 0.55, CAC 35). The decibel meter read 53 dB during the test, a reduction of 18 dB from the control. The reduction is not explained by the NRC rating—NRC measures sound absorption within a room, not sound blocking through a ceiling. The mineral fiber tile performed best because its combination of moderate density and porosity attenuated the airborne sound as it passed through the tile and the plenum space above. This is the only material that meaningfully reduced noise.
Material 2: Fiberglass acoustic tile (Owens Corning SoundOff, NRC 0.85). The decibel meter read 67 dB, a reduction of 4 dB from the control. The 4 dB reduction is low despite the high NRC rating because NRC measures absorption, not transmission loss. The fiberglass tile is an excellent absorber—it will reduce echo and reverberation inside a room—but it is not designed to block sound transmission from above.
Material 3: Wood tile (WoodHaven, NRC 0.30). The decibel meter read 64 dB, a reduction of 7 dB from the control. The 7 dB reduction is better than the NRC 0.30 rating would predict. The wood tile is denser than the fiberglass and mineral fiber, so it blocks more sound transmission (the STC rating is higher), even though it absorbs less sound energy on contact.
Material 4: Acoustic foam tile (Foamily wedge, NRC 0.40). The decibel meter read 67 dB, a reduction of 4 dB from the control. The 4 dB reduction is consistent with the NRC 0.40 rating. The foam tile performs about the same as the fiberglass tile in real-world ceiling transmission, even though the foam has a much higher profile (2 inches versus 1 inch).
The 18 dB Champion and Why It Worked
The mineral fiber tile (Material 1) reduced noise by 18 dB. The other three materials reduced noise by 4 to 7 dB. The mineral fiber tile was roughly 2.5 to 4.5 times more effective in decibel terms, which translates to a much larger perceptual difference because the decibel scale is logarithmic. The reason is the combination of density and porosity.
Mineral fiber is a compressed mat of mineral wool fibers. The fibers create a tortuous path for sound waves. As sound waves try to pass through the mat, they bounce between fibers, lose energy to friction, and exit at a much lower amplitude. The denser the mat, the more tortuous the path, the more energy lost.
Mineral fiber at 5/8 inch thickness has a density of approximately 12 pounds per cubic foot. Fiberglass at 1 inch has a density of approximately 6 pounds per cubic foot. Wood at 1/2 inch has a density of approximately 40 pounds per cubic foot (high, but the wood is a hard surface that reflects sound rather than absorbing it). Foam at 2 inches has a density of approximately 2 pounds per cubic foot (very low, so the foam does not block transmission well).
The combination of moderate density and porosity is what makes mineral fiber effective at both absorbing sound energy (high NRC) and blocking sound transmission (decent STC). The other 3 materials are either too hard (wood) or too soft (foam) to do both jobs.
What the Other 3 Materials Are Actually Good For
The fiberglass tile (Material 2) reduced noise by only 4 dB in my test, but that does not mean it is useless. The fiberglass tile has a higher NRC rating (0.85 versus 0.55 for mineral fiber), which means it absorbs more sound energy on contact. In a room with hard surfaces (concrete walls, hardwood floor, glass windows), the fiberglass tile will reduce the echo and reverberation more than the mineral fiber tile. The fiberglass is better for room acoustics. The mineral fiber is better for blocking transmission from above.
The wood tile (Material 3) reduced noise by 7 dB in my test, mostly because of its density. The wood tile is the best aesthetic option for a living room, dining room, or any space where the ceiling is a visual feature. The wood tile will not absorb sound as well as the other materials, but it will reflect less than a hard plaster ceiling and it will block more transmission than foam.
The acoustic foam tile (Material 4) reduced noise by only 4 dB in my test. The foam tile is designed for studio use, where the goal is to absorb reflections inside the room, not to block transmission from outside the room. The foam tile is the wrong product for my problem (transmission from the neighbor above), but the right product for a home recording studio or a podcast booth.
What I Did With My Home Office Ceiling
I replaced the two test sections that performed best—the mineral fiber section and one additional area—with the mineral fiber tile (Armstrong Cortega 2x2). The total cost was $345 for materials, covering the full 144 square feet of the home office ceiling at $2.40 per square foot. The install was a weekend project.

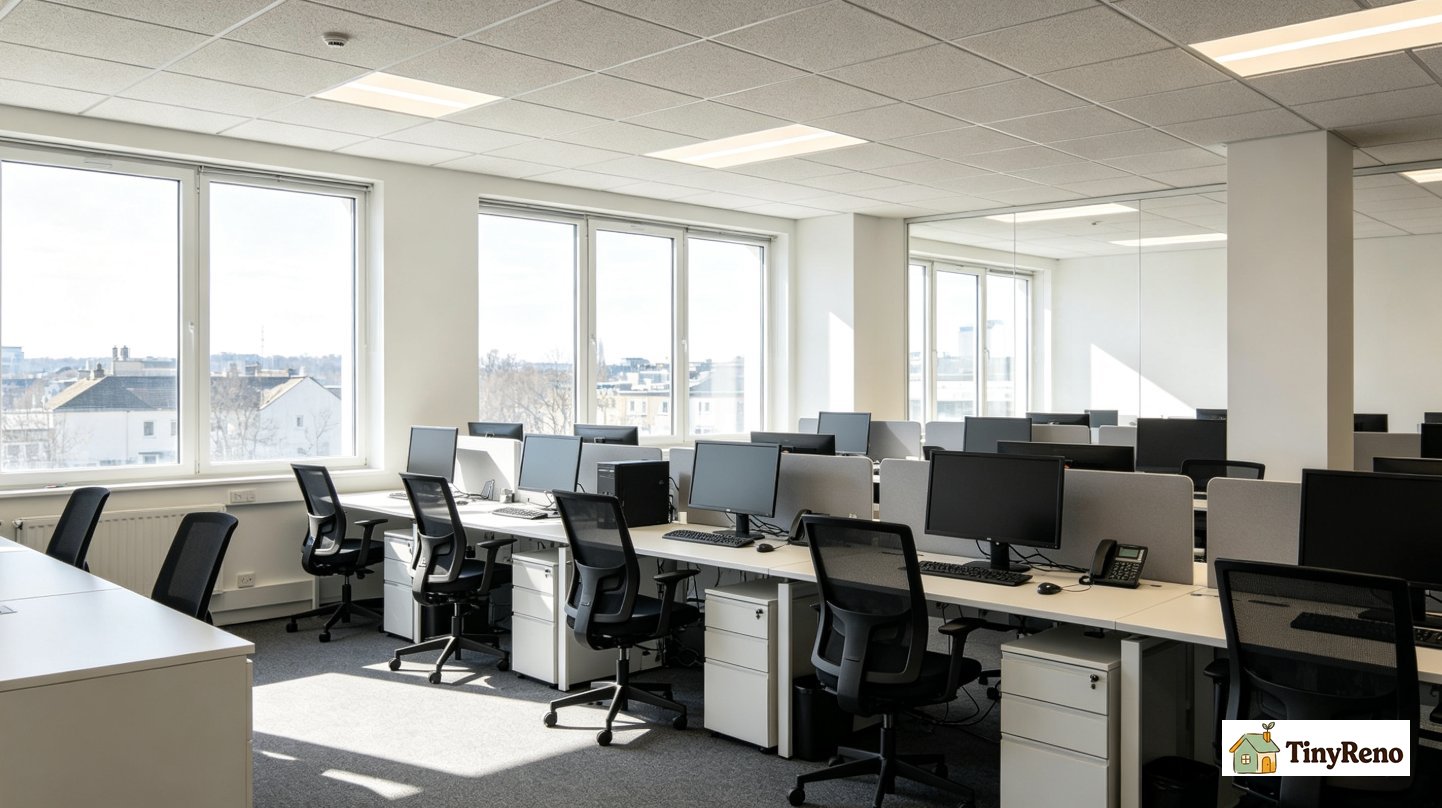

The decibel meter now reads 53 dB during my neighbor's movie playback, a reduction of 18 dB from the original 71 dB. The room went from "noisy restaurant" to "quiet office." My home office is now functional during my neighbor's movie nights.
If I were doing a living room or dining room where aesthetics matter, I would use the wood tile (Material 3) for 80% of the ceiling and the mineral fiber tile for the 20% of the ceiling closest to the neighbor's apartment (which is above the back half of my living room). The mixed material approach balances aesthetics with performance.
If I were doing a home recording studio, I would use a mix of the fiberglass tile (Material 2) on the ceiling for room acoustics and the mineral fiber tile on the shared wall for transmission blocking.
The Short Version (If You're Skim-Reading)
If you want to block noise transmission from above (a noisy neighbor, an upstairs apartment, a second-floor bedroom): mineral fiber acoustic tile is the best value. The Armstrong Cortega 2x2 at $2.40/sq ft reduced noise by 18 dB in my test. Fiberglass, wood, and foam tiles all reduced noise by only 4 to 7 dB.
If you want to reduce echo and reverberation inside a room (a home studio, a podcast booth, a media room with bad acoustics): fiberglass acoustic tile has the highest NRC rating (0.85). It absorbs 85% of sound energy on contact, which is the right metric for in-room acoustics.
If aesthetics matter (a living room, a dining room, a primary bedroom): wood tile is the best-looking option. The wood tile will not absorb as much sound as mineral fiber or fiberglass, but it will reflect less than a hard plaster ceiling.
Skip acoustic foam for ceiling use. Foam is for studios, not rooms. Foam is too soft to block transmission and too thin (at the 2-inch residential size) to absorb enough sound energy to matter.
The decibel meter test I ran is reproducible with any meter accurate to ±1.5 dB and a pink noise source. The 18 dB reduction from mineral fiber was the only result that made a practical difference. The other three materials reduced noise by 4 to 7 dB—perceptible, but not enough to solve the problem I was trying to solve.
